Parsers

Csv Struct Parser

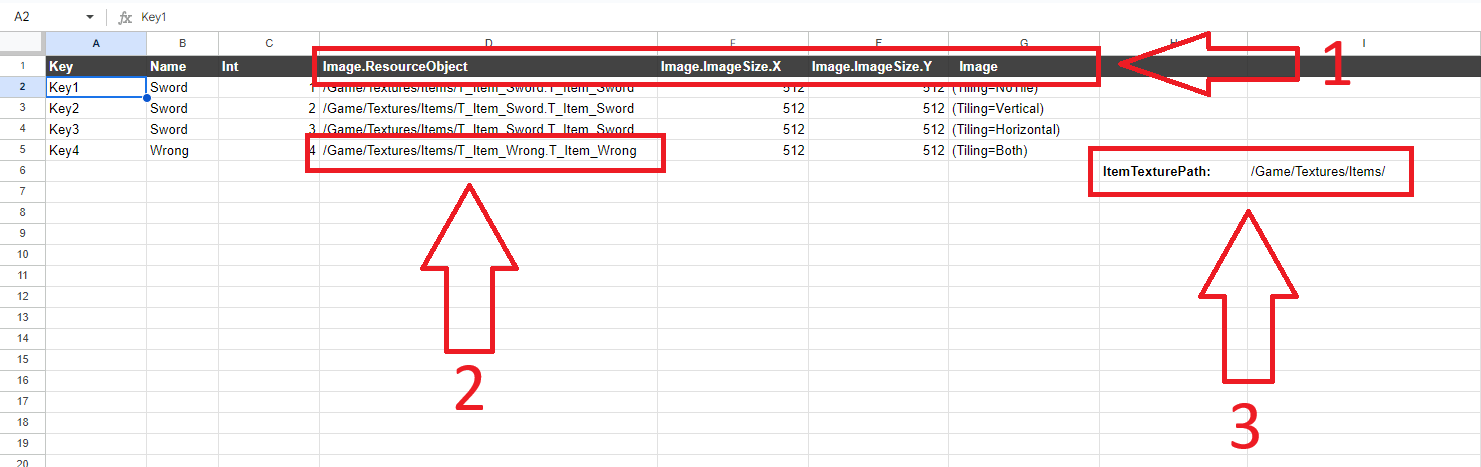

The default parser included into the plugin has three key features:

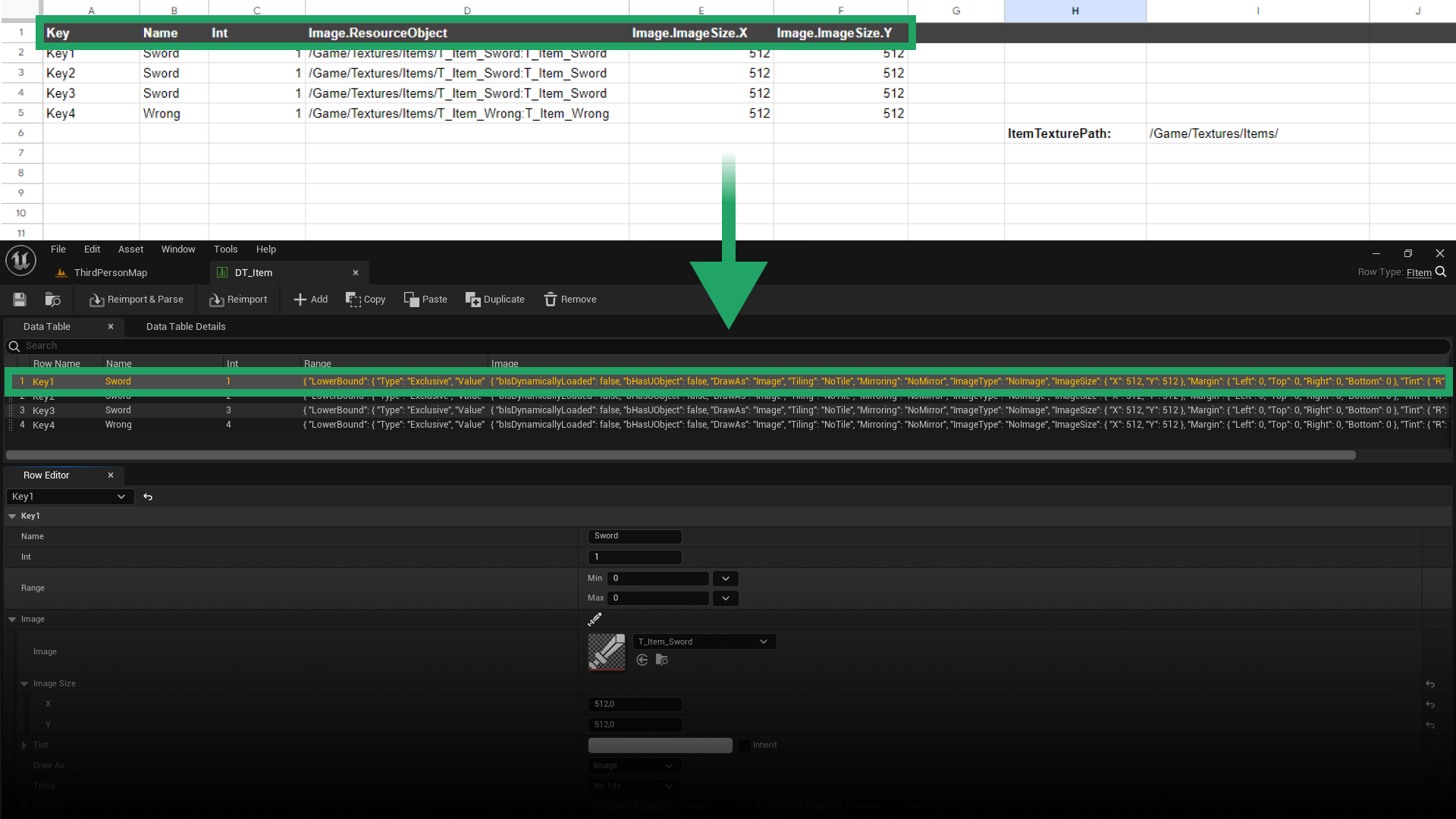

1. Struct Transformation:
   Converts "Outer.Inner.Value" columns into Unreal Engine-compatible complex structs.

   Note

   You can still use "Outer" directly with the classic structured value "(Inner = (Value="value"))". The additional fields will be combined with the original column, possibly overwriting them if they collide.

2. Existence Check:
   Verifies object existence during import, enhancing project reliability.

3. Data Cleanup:
   Clears irrelevant information without designated column names, used eventually for formulas or additional cell processing.

---

Create Parser

Warning

All this code needs to be added to an editor module, or you could face compilation issues during shipping.

1. Create a child class from UCsvBaseParser and override ParseCsv to implement the main logic of the parser.

   UCLASS()
   class UMyCsvParser : public UCsvBaseParser {
       GENERATED_BODY()

   public:
       virtual UCsvWrapper* ParseCsv(UCsvWrapper* InCsv) override;
   };


2. Inside the ParseCsv, you have to implement the main logic of your parser.

   UCsvWrapper* UMyCsvParser::ParseCsv(UCsvWrapper* InCsv) {
       UCsvWrapper* OutCsv = NewObject<UCsvWrapper>();

       // Fill and elaborate OutCsv

       return OutCsv;
   }


See CsvWrapper to see how to manipulate a CsvWrapper
